FIRE PROTECTION

Stay Safe From Fire

Hose Drum and Pipe

Dozz Rubber Water Hose

Applications:
The Hose has a wide range of applications in
various Industries, Home, Agriculture Projects, Mines and
Dams. Besides this, the Hose is widely used In Hose Reels
in various Fire fighting applications.

Construction:
The inner Lining is seamless and smooth in
bore. The reinforcements thereafter is of High strength
synthetic or Natural Yarn. The outer Cover is then made of
weather and abrasion resistance Rubber.

Unique Feature:
The “DOZZ Rubber water hose has an
excellence of ISI certification mark

OSCO Thermoplastic Hose

Applications:
The Hose has a wide range of applications in various
Industries, Home, Agriculture Projects, Mines and Dams. Besides this,
the Hose is widely used In Hose Reels in various Fire fighting
applications.

Construction:
The inner Lining is seamless and smooth in bore. The
reinforcements thereafter is of High strength synthetic or Natural
Yarn. The outer Cover is then made of weather and abrasion
Thermoplastic Material.

Unique Feature:
The “OSCO” thermoplastic hose has an excellence of
ISI certification mark.

Enquire Now

Dozz Rock Drill Hose

Exceed IS:446 type 3 (Wire Braided)
TUBE: Specially designed oil resistant synthetic
rubber.
REINFORCEMENT: Single braid of high tensile steel
wire.
COVER: Excellent weather & abrasion resistant
natural rubber black.

Dozz Teflon Hose

TUBE: PTFE
REINFORCEMENT: SS
304 steel wire braided

"DOZZ" ABC Fire Extinguisher Hose

Suitable For Class A, B C & D Fires Involving Combustible Material Like Wood Paper, Cloth Flammable Gas Liquid Petrol, Paints Solvents &
Electricity Started Fires & All Classes of Fire.

DOZZ CARBON FREE HOSE

Lining: Smooth, non conductive, natural /
Synthetic / blend rubber compound.
Reinforcement: Natural / Synthetic rubberized
woven textile fabric.
Tube: Smooth grey synthetic rubber tube, nonconductive.
Cover: Oil, heat and electrical resistant
synthetic rubber compound.

DOZZ Chemical Hose

Tube: Specially compounded chemical
resistant EPDM rubber black.
Reinforcement: High tenacity synthetic textile
braid (above 1.1/2″ with helical wire)
Cover: Specially compounded chemical
resistant EPDM rubber back.

Dozz Steam Hose

Tube: Black colour, EPDM rubber resistance to high temp. steam.

Reinforcement: Single steel wire braid.

Cover: Black colour, EPDM rubber resistance to abrasion, heat and weather.

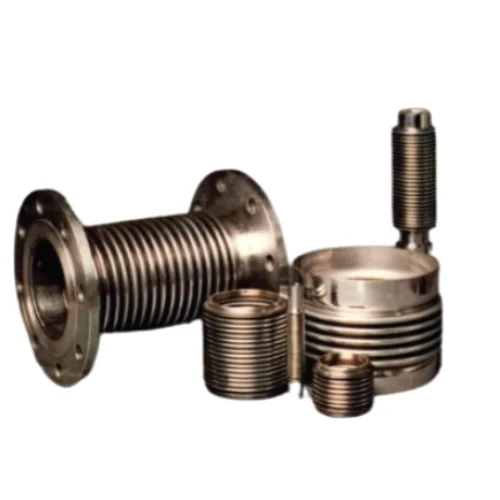

DOZZ Expansion Bellow Hose & Joint Assemblies

Metal Bellows Expansion joints have been designed to absorb a specified amount of
movement by flexing of the thin-gauge convolutions. If proper care is not taken during installation, it may reduce the cycle life and the
pressure capacity of the Expansion joints which could result in an early failure of the bellows element or damage the piping systems.

Dozz Rubber Hose

APPLICATION: Recommended for use with
air compressor and other civil construction
sites and industrial applications.
CONSTRUCTION TUBE: Uniform in thickness
made from a blend of natural and Synthetic
Rubber compound.
REINFORCEMENT: High Tensile Synthetic
yarn.
COVER: Natural modified rubber Abrasion
and Ozone Resistant,
FINISH – Plain smooth
TEMP RANGE: -25°C to +70°C
Colour: Inner-Black & Outer Cover-Black

Dozz Rubber Hose

SAE-100 R1/ DIN 20022 1SN
SPECIFICATION: Conforming to Std. SAE – 100
R1
Construction:
Tube: Seamless oil resistant.
Reinforcement: One braid of HTS Wire.
Cover: Oil, weather & abrasion resistant.
Temperature: (-40°C) to 120°C
End Connection: Swaged or Crimped or
Reusable Type.
Application: For high pressure hydraulic oils,
fuel, lubricating oils, water and air.

Fire Accesories

Adaptors

Blank Caps

Breeches

Water Ejector

Landing Valves

Fire Hoses

Fire Hose Couplings

Fire Vehicle Equipment

Delivery Hose Accessories

Delivery Valve

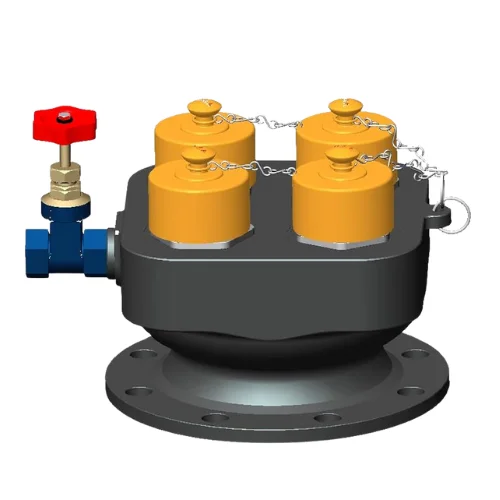

Dry Risers

LPCB / Kitemark Landing Valve

Branch Pipes

Speciality Nozzel

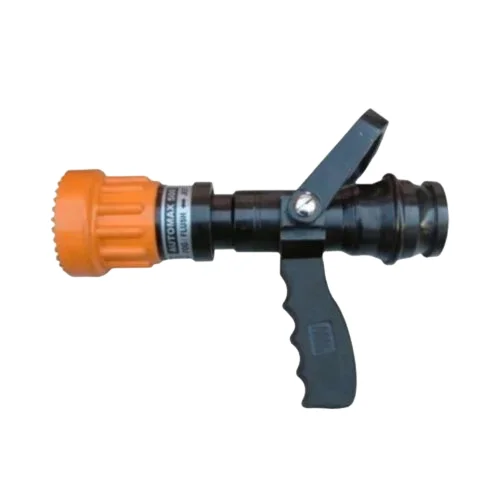

Headline Nozzels

Fire Accesories

Fire Cabinets

Hose Reels

3-Way Collecting

Foot Valve Strainer

Non - Return Valve

Suction Adaptor

Suction Coupling

Suction Strainer

Suction Wrench

Foam Water Nozzles

Water Nozzles

High Velocity Brass

High Velocity Stainless Steel

Medium Velocity Brass

Fire Accesories

Medium Velocity Stainless Steel

Water Curtain Brass

Water Curtain Stainless Steel

Fixed Foam Equipment

Portable Foam Equipment

Trailers & Trolleys

Pumps

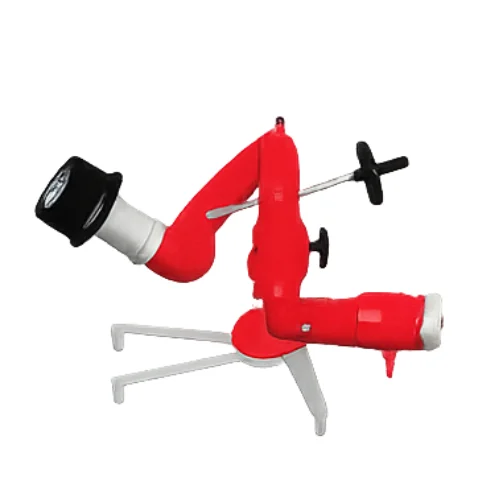

Portable Monitors

Remote Controlled Monitors

Self Oscillating Monitors

Water Monitors

Stainless Steel Monitors

Vehicle Monitors

Jat Ratio Controllers

Custom Design Monitors

CLEAN AGENT FIRE EXTINGUISHERS

Stored Pressure 2kg, 4kg, 6kg fire extinguishers

Safe to use on all your sensitive equipment, the Clean Agent Extinguisher brings you the added benefit of being the world’s most advanced, and by far the most eco-friendly extinguisher. Clean Agent Extinguishers leave no residue, pack in mega power and are absolutely safe for use on any sensitive electronic equipment.

ISI Marked 1 year warranty

Safe for use on live electrical equipment

Squeeze grip operation

Fully refillable

Controlled discharge

Supplied with wall bracket

Full range of spare parts are available

MODULAR TYPE FIRE EXTINGUISHERS

AUTOMATIC CEILING MOUNTED FIRE EXTINGUISHERS

2KG, 5KG, 10KG

Automatic fire extinguishers are ideal for use in unoccupied rooms or areas and can be used to provide fire safety protection in an enclosed space.

Available with ABC Powder, Seal fire Foam and CLEAN AGENT gas Extinguishers

Wide range of uses including unattended areas, storage rooms, server rooms, engine compartments

Supplied complete with temperature activation bulb (68ºC) which activates the fire extinguisher when the temperature is reached

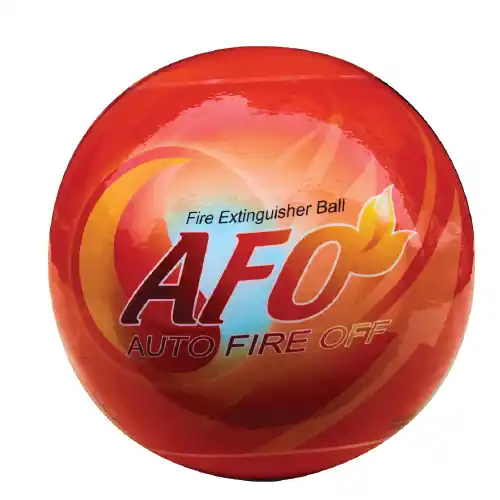

Fire Ball

Product Details

Weight: 1.3kg
Shape Ball-diameter 15cm
Methods of use: Fixed point automatic induction/input
Content: import harmless dry powder
Auto reaction time: 3-5 seconds
Strong construction
Elevated durability
Fine finish

Fire Blankets

Welding Blankets

Ceramic Welding Blanket With Vermiculite Coating

Made from High closely Ceramic fibre cloth , woven closely and coated with vermiculite
SS wire or FG REinforced Blanket.
Vermiculite protects the blanket from Abrasion and Flame
Thickness : 2mm and 3mm
Temperature Resistance : Upto 12000C
Tested and Certified product
Does not contain Asbestos
Lower thermal conductivity
Size: 1mtr x 2mtr, 2mtr x 2mtr,or as required
Color: Brownish
Metallic eyelets at every meters on Border and Hanging Hooks for support

Silica Welding Blanket

Made from best quality of High – Silica fabrics
Does not contains Asbestos or Ceramic
Thickness : 0.8mm and 1.2mm
Temperature resistance upto 10000C
Ideal replacement of fiberglass in High Temperature works.
Tested and Certified Product
Less thermal shrinkage and low electrical conductivity
Metallic eyelets are fixed at borders at regular intervals for Hanging support
Colour: Light Brownish
Size: 1mtr x 2mtr, 2mtr x 2mtr,or as required

Coated Fibreglass Welding Blanket

Made from filament or texturized glass fabrics.
Does not contains Asbestos
Temperature resistance: 5500C to 8000C
Tested and Certified product
Metallic eyelets on borders at regular intervals for hanging
support
Size: 1mtr x 2mtr, 2mtr x 2mtr, or as required

Fire Welding Blanket

Made from glass fibre fabric
Thickness: 3mm to 4mm
Size: 1mtr x 2mtr, 2mtr x 2mtr, or as required
Temperature resistance upto 9000C
Does not contain Asbestos
Tested and Certified Product
Metallic Eyelets on Borders at equal intervals for hanging support

Sirens

Gas detectors

Alcohol and Gas Detector

Portable Gas Detector & Gas Detections

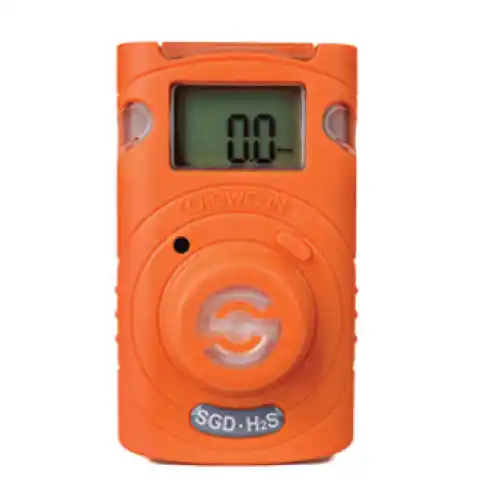

Single Gas Detector - Clip SGD

Clip Single Gas Detector (SGD) is designed for use in hazardous areas, and is available for oxygen (O2), hydrogen sulphide (H2S) and carbon monoxide (CO).

Clip SGD is designed to withstand the harshest industrial working conditions and delivers industry leading alarm time, changeable alarm levels and event logging as well as user-friendly bump test and calibration solutions.

Gasman Portable Detector

The Gasman full function personal single gas monitor is compact and lightweight yet is fully ruggedised for the toughest of industrial environments. Featuring simple single button operation, it has a large easy-to-read display of gas concentration, and audible, visual and vibrating alarms.

Gasman is a range of rugged, compact single gas personal monitors designed for use in the toughest environments. Its stunningly compact and lightweight design makes it ideal for use in industries such as oil and gas, chemical plants (with exotic gases), steel works (special CO sensor), hospitality (CO2) and waste and water works.

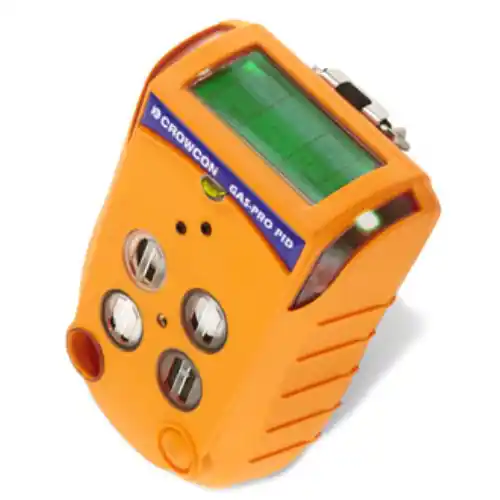

Gas-Pro PID for VOCs

Gas-Pro PID gives you full flexibility with a wide range of gas types to choose from. With an optional pump, the Gas-Pro PID is the perfect product addressing the requirements of a wide range of applications.

Gas-Pro PID utilises the Photo Ionization Detection technology to allow you to detect hundreds of Volatile Organic Compounds (VOCs). If you are working in an environment that is high in levels of solvents, glues, paints and general VOCs, the Gas-Pro PID will monitor your safety. With its dual-coloured display, the monitor will alert the user with its 95db audible alarm and its dual-coloured visual alarm bars.

Multi Gas Detectors & Monitors

Multi Gas Detectors and monitors are used for the detection of flammable gases, oxygen depletion and an extensive range of toxic gases meeting the safety monitoring requirements of a broad range of different industries. Designed for situations where a variety of gases need monitoring at the same time the detectors are avaiable preset to meet your individual requirements. Available as either fixed or fully portable gas detectors they are commonly used for the following gases, Hydrogen Sulphide, Carbon Monoxide, Oxygen and combustibles (%LEL). All gas detectors require regular callibration to ensure accuracy of the gas readings. Gas Monitor Point offer a full callibration service please do contact us for full details and pricing of this service!

Respo Safety Natural Gas Leak Detection and Measurement

Laser Methane Gas Detector

Natural Gas Leak Detectors

Metal Detectors

Hand Held Body Scanners

Vibrate & Silent Alarm
Operates on Disposable or Rechargeable Batteries
Sensitive, Rugged and Dependable
Lightweight, Comfortable Grip
Fully Adjustable Sensitivity
Large Scanning Area
Audio Beep and LED Visual Alarms
Weight 14 oz / 397g
Dimensions: Height: 15 3/4″ Inches , Width: 3″ Inches, Depth: 1 3/8″ Inches
Power Requirements: 9 Volt Alkaline Battery
Typical Disposable battery life is 80 hours
Instantaneous detections of all conductive metals
Safe non-intrusive, non- contact search method
9 Volt Battery and Charger Kit

Body Orifice Security Scanner

Easy to Operate and Maintain
Wheel Kit for easy mobility
From 1 to 99% sensitivity
Harmless to Pregnant women
(Optional) Back up Battery Kit
Five Zone Full Body Scan System
Oral / Nasal Cavity Scanner
Abdomen Cavity Scanner
Anal / Vaginal Cavity Scanner
Lower Leg Area Scanner
Instantaneous detections of all conductive metals
More consistent than security walk-thru or
handheld metal detectors
Safe non-intrusive, non- contact search method
Height: 50″ (127 cm)
Length: 51″ (129 cm)
Width: 22 inches (55.8 cm)
Weight: 210 lbs (95.45 kg)
Power Requirements: 115 – 230 VAC, 50-60 Hz

Smoke Alarm and Fire Alarms

RE316S-2L

Conventional Photoelectric smoke detector with base

Features

UL listed.
Dual LED’s for 360° visibility.
Advanced detection and communication protocol.
Easy installation and maintenance.
Sleek low-profile housing design.
Regular 100mm base.

Mechanical Specification

Height	:	46 mm with base
Diameter	:	100 mm dia
Weight	:	130g with base
IP Rating	:	IP – 42

Electrical Specification

Operating Voltage	:	9 ~ 33V DC
Operating Temperature	:	-10 °C to 37.8 °C
Storage Temperature	:	-10 °C to 60 °C
Humidity	:	0 – 95% RH, non-condensing
Reset Voltage	:	less than 1V
Standby Current	:	-50 μA.
Start up Time	:	60s.
Start-Up Current	:	170 μA.
Alarm Current	:	90 mA.(Max).
Remote Output	:	15mA maximum open collector
Smoke Sensitivity	:	(1.96 ± 0.76) % / ft
Air Velocity	:	0 – 4000 fpm.
Cycle time	:	5 Sec
Installation Space	:	5 meters

RE316S-2L

Heat Detector

Features

UL Approved.
Dual LED’s for 360° visibility.
Advanced detection and communication protocol.
Easy installation and maintenance.
Sleek low-profile housing design.
Regular 100mm base.

Mechanical Specification

Height	:	46 mm with base
Diameter	:	100 mm dia
Weight	:	130 g with base
IP Rating	:	IP – 42

Electrical Specification

Operating Voltage	:	9 ~ 33V DC
Reset Voltage	:	less than 1V
Start-Up Current	:	120 μA.
Alarm Current	:	40 mA (Max)
Remote Output	:	15 mA maximum open collector
Thermal Rating	:	59 °C (138 °F)
Rate of Raise of Temp	:	11.1°C / min (20°F/min)
Smoke Sensitivity	:	(1.9 ± 0.76) % / ft
Air Velocity	:	0 – 4000 fpm.
Operating Temperature	:	-10 °C to 37.8 °C
Humidity	:	0 – 95% RH, non-condensing

RE 316H – 2L

Heat Detector

Features

UL listed.
Dual LED’s for 360° visibility.
Polarity free wiring
Advanced detection.
Easy installation and maintenance.
Sleek low-profile housing design.
Regular 100mm base.

Mechanical Specification

Height	:	46 mm with base
Diameter	:	100 mm dia
Weight	:	130g with base
IP Rating	:	IP – 42

Electrical Specification

Operating Voltage	:	9 ~ 33V DC
Reset Voltage	:	less than 1V
Start-Up Current	:	120 μA.
Alarm Current	:	40 mA (Max)
Remote Output	:	15mA maximum open collector
Thermal Rating	:	59 °C (138 °F)
Rate of Raise of Temp	:	11.1°C / min (20°F/min)
Operating Temperature	:	-10 °C to 37.8 °C
Humidity	:	0 – 95% RH, non-condensing

RE 326Series

Heat Detector

Features

UL Approved.
Dual LED’s for 360° visibility.
Advanced detection and communication protocol.
Easy installation and maintenance.
Sleek low-profile housing design.
Regular 100mm base.

Mechanical Specification

Height	:	46 mm with base
Diameter	:	100 mm dia
Weight	:	130 g with base
IP Rating	:	IP – 42

Electrical Specification

Operating Voltage	:	10 ~ 28V DC.
Operating Temperature	:	0 °C to 37.8 °C.
Relative Humidity	:	10% to 90%.
Reset Voltage	:	less than 1V.
Stand by Current	:	85 Micro Amps.
Start Up Time	:	30 Seconds.
Cycle time	:	28 – 35 Seconds.
Alarm Current	:	60 mA (Max.).
Remote Output	:	15mA maximum open collector.
Smoke Sensitivity	:	0.10 to 0.16 dB/m.
Thermal Rating	:	57 OC (135 OF).
Alarm Contact Rating
C,NO	:	1A @ 30 VDC; 0.5A @ 125VAC.
C,NC	:	1A @ 30 VDC; 0.5A @ 125VAC (Optional On Order Basis)
