SAFETY SHOWER
Stay Safe With Showers
Safety Eye Wash
Pedestal Mounted Push Plate Operated USE 1 Gi 91211001
Product Information:
Push plate operated along with Pedestal
Receptor Bowl:
High visibility Yellow Cycolac Receptor Bowl resistant to damage from alkalies, salt solutions, oils, most acids.
Supply:
½” BSP, Recommended pressure: 30 PSI/ 2 kg/cm2
Atomiser Heads:
Twin cushion-flow Cycolac Atomizer Heads in high visibility Yellow/Black with flip-flop dust covers that protect heads
that automatically release with water pressure.
Drain:
1 ¼” BSP
Activation:
Yellow Cycolac Push Plate operated Stay-open Brass Ball Valve with Brass Ball and Spindle.
Net Shipping Weight
LSE 1 : 8 kg
Pedestal Mounted Push Plate Operated USE 1 CSS304 91223001
Product Information:
Push Plate Operated
Receptor Bowl:
SS Receptor Bowl resistant to damage from alkalies, salt solutions, oils, most acids
Supply:
½” BSP, Recommended pressure: 30 PSI/ 2 kg/cm2
Atomiser Heads:
SS Slim twin cushion flow atomizers having aerator filter and pop off dust covers
Drain:
1 ¼” BSP
Activation:
SS Push plate operated stay open SS Ball valve with SS Ball and Spindle.
Net Shipping Weight:
LSE 1CSS : 8 Kg
Pedestal Mounted Push Plate/Foot Operated with Protective Cover USE 1 CSS304 91221202
Product Information:
Push Plate / Pedal Operated with Protective Cover
Receptor Bowl:
SS Receptor Bowl resistant to damage from alkalies, salt solutions, oils, most acids
Supply:
½” BSP, Recommended pressure: 30 PSI/ 2 kg/cm2
Atomiser Heads:
SS Slim twin cushion flow atomizers having aerator filter and pop off dust covers
Drain:
1 ¼” BSP
Activation:
SS Push plate / Foot Pedal operated stay open SS Ball valve with SS Ball and Spindle.
Wall Mounted Push Plate Operated USE 1B GI 91211301
Product Information:
Push Plate Operated – Wall Mounted
Receptor Bowl:
High visibility Yellow Cycolac Receptor Bowl resistant to damage from alkalies, salt
solutions, oils, most acids.
Supply:
½” BSP, Recommended pressure: 30 PSI/ 2 kg/cm2
Atomiser Heads:
Twin cushion-flow Cycolac Atomizer Heads in high visibility Yellow/Black with flip-flop
dust covers that protect heads that automatically release with water pressure.
Drain:
1 ¼” BSP
Activation:
Push plate operated stay open Brass Ball valve with Brass Ball and Spindle
Net Shipping Weight:
LSE 1B : 3 Kg
Wall Mounted Push Plate Operated USE 1B CSS304 91221301
Product Information:
Push Plate Operated – Wall Mounted
Receptor Bowl:
SS Receptor Bowl resistant to damage from alkalies, salt solutions, oils, most acids
Supply:
½” BSP
Recommended pressure: 30 PSI/ 2 kg/cm2
Atomiser Heads:
SS Slim twin cushion flow atomizers having aerator filter and pop off dust covers
Drain:
1 ¼” BSP
Activation:
SS Push plate operated stay open SS Ball valve with SS Ball and Spindle.
Net Shipping Weight:
LSE 1B : 3 kg
Portable Eye Wash UPEW 14
91291001
Portable Eye Wash UPEW 15
91292001
Safety Showers
Eye/Face Wash by Push Plate & Safety Shower by Pull Rod USES 7 GI 91213002
Product Information:
Eye/Face Wash operates by Push Plate & Shower by Pull Rod
Supply:
1 ¼” BSP
Atomizer Heads:
Twin cushion-flow Cycolac Atomizer Heads in high visibility Yellow / Black with flip-flop dust covers that protect heads
that automatically release with water pressure.
Shower Head:
Extra large Cycolac drench shower head with perforated spreader ensures complete drenching of the victim in
seconds.
Receptor Bowl:
High visibility Yellow extra-large Cycolac Receptor Bowl resistant to damage from alkalies, salt solutions, oils, most
acids.
Drain:
1 ¼” BSP
Activation:
For Eye Wash: Yellow ABS Push plate operated Stay open Brass Ball Valve with Brass Ball and Spindle.
For Shower: Yellow Galvanized Pull Rod
Net Shipping Weight:
LSES 7 : 20 Kg
Eye/Face Wash by Push Plate & Safety Shower by Pull Rod USES 7 CSS304 91223003
Eye/Face Wash by Foot Pedal & Safety Shower by Pull Rod LSES 8 GI91213501
Eye/Face Wash by Push Plate/ Foot Pedal and Safety Shower by Pull Rod USES 7 CSS 304 with Foot pedal 91223202
Eye/Face Wash by Push Plate/Foot Pedal andSafety Shower by Pull Rod USES 7 GI with
Foot Pedal
91213202

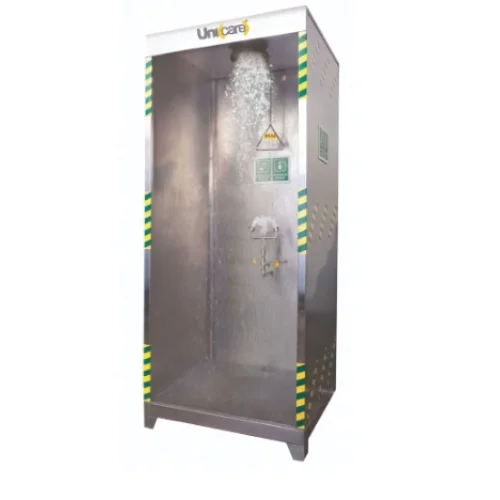

USES 7 CSS304 encased in a Cabinet 91224001
Features:
• Emergency Combination unit encased ina cabinet of Stainless Steel 304*.
• It is ideal for highly sensitive equipmentareas and to avoid water spread.
• The entrance is provided with a curtain ofPVC strips.
• The bottom perforated plate has anadequate load-bearing capacity.
• Equipped with a collection chamber of200 litres capacity.
Connections: Supply: 1 ¼”, Drain 2 ½”
USES 7 GI with Anti-Scald Valve
With an Anti-Scald Valve, automatically bleeds off hot water till such time the
water reaches the requisite set safe temperature.
Features:
• Will initiate flow when the thermostatic actuator senses 98°F(36.7°C) and will
remain open as long as the discharge water temperature is above 95°F(35°C)
• Self-operating, no power required
Design:
• Stainless steel body
• Corrosion resistant
• Can be installed in any orientation
*Anti-Freeze version also available
USES 7 CSS304 with Beacon,Hooter - CSS304 91223204
Product Information:
Combination Unit of Eye/Face Wash Push Plate / Pedal Operated and
Shower Pull rod operated along with Light & Alarm System.
Additional Features:
Activation of Light & Alarm when Eye/Face wash or Shower in use
Can be used for transmitting signal to the control room when in use
Net Shipping Weight:
LSES 7/8 CSS LA : 22 Kg
Safety Shower USS 9 GI
91212001
Product Information:
Pull Rod operated Safety Shower
Supply:
1 ¼” BSP
Shower Head:
Extra large Cycolac drench shower head with perforated spreader ensures complete
drenching of the victim in seconds.
Activation
For Shower: Yellow Galvanized Pull Rod
Net Shipping Weight
LSES 9 GI : 15 KG
Wall Mounted Safety Shower USSW 1 CSS 304 91222301

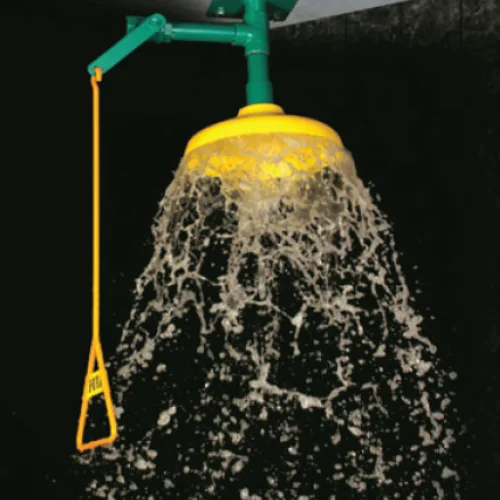

Ceiling Mounted Safety Shower USSC1 GI
91212401
Accessories and Spare Parts
Brass Eye Wash Valve With ABS Push Plate
82500102

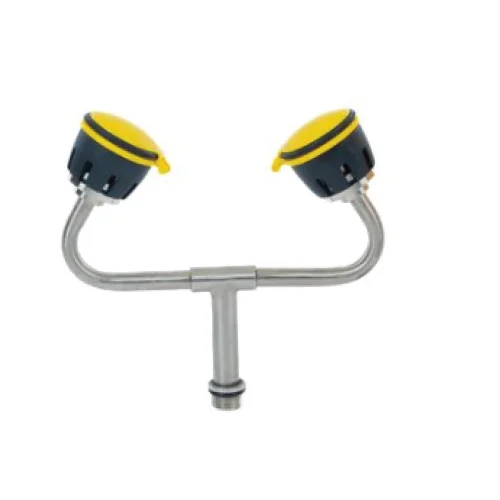

ABS Atomiser unit with flip-flop dust cover
81301101
Brass shower valve with stem (also available
in SS304)
82500107
Spare Rubber cup for SS304 atomiser unit
81301104
GI Pull rod (also available in SS304)
82100005
SS304 Slimline Atomiser unit with pop off
dust cover
82300001
SS Receptor bowl (Also available in ABS) 82300002
ABS Shower Dome (Also Available in SS304) 81301301
ABS Swirltec (can be used with or without shower dome, also available in SS304) 81301302
SS Foot Pedal
82300011
Eye Wash Bottle
91293001
SS304 eyewash valve with SS304 Push Plate
82300102
Vidyutsafe Insulating Mats
Applications:
The VIDYUTSAFE ISI Marked Insulating Mats
For electrical Purposes has a wide application in various
Substations, Power Plants etc. The Mats are used for floor
coverig below control panel s to provide the safety of
workman due to possible leakage of current.
Construction:
The Mats are made up of blend of Synthetic
Polymers.
Unique Feature:
The VIDYUTSAFE becomesthe first brand in
Indian Market to Obtain the ISI Mark on Insulating Mats for
Electrical Purposes.
| Property | Specification |
|---|---|
| Size | Width: 1 Mtr, Long Length |
| Colour | Black / Red / Blue (Other colours as agreed between supplier and purchaser) |
| Finish | Both Side Patterned |
| Tensile Strength | For Temp. -10 to 55°C – 15 N/mm² (Min.) |
| Elongation at Break | For Temp. -10 to 55°C – 250% (Min.) |
| Aging Test | (For Temp. -10 to 55°C) |
| 1. Tensile Strength | Not Less than 75% without Aging |
| 2. Elongation at Break | Not Less than 75% without Aging |
| Effect of No.1 Transformer Oil, HCL | (For Temp. -10 to 55°C) |
| 1. Tensile Strength | Not Less than 85% without Aging |
| 2. Elongation at Break | Not Less than 85% without Aging |
| Insulation Resistance with Water | 10,000 MΩ (Min.) |
| Leakage Current | 10 mA (Max.) |
| Flame Retardance | The Mat is retarded to flame |
| Low Temperature Resistance | No tear, break or cracks observed in Mats under force of 100N for 1 Hrs. At -10 ± 3°C |
Insulating Mats (For Electrical Purpose)
| S.No. | CLASS OF MATS | THICKNESS | DIELECTRIC STRENGTH | AC RMS VOLTAGE |
|---|---|---|---|---|
| 1. | A. | 2.00 mm | 30KV | 3.3 KV |
| 2. | B. | 2.50 mm | 45KV | 11KV |
| 3. | C. | 3.00 mm | 65KV | 33KV |
